We are a trusted High Speed High All geared precision lathe machine supplier in India offering an exclusive range of all gear lathe machines as per the customer's requirements and specifications. Ideal for grooving, turning, cutting, sanding, etc. they can quickly shape several material pieces in the desired shape. Since inception, we have been engaged in supplying high quality High all gear precision lathe machines having desired speed and customized features. This is why a wide number of clients have shown trust in our offered lathe machines.

The offered Pioneer lathe machines are sturdy in construction and have been thoughtfully developed to withstand the rugged handling during various industrial applications. Being corrosion resistant and featuring a rugged design, our Pioneer lathe machines ensure better efficiency and durability. Besides this, they leverage leading technology and deliver seamless performance throughout their life at a very low maintenance cost. We are offering premium quality Pioneer lathe machines at affordable prices. Being the leading lathe machine manufacturer in India, we have won the trust of several clients and brands.

Extra Accessories

Collet attachment & Collets, Taper Turning Attachment, Rear Tool Post, Electro Mechanical Brake with Starting Third Shaft, Machine Lamp, Chuck Flange, Face plate, Follow Rest, Steady Rest, Quick Change Tool Post, Coolant Pump & Fitting, Rear Splash Guard, Carrier Plate, True Chuck, Dog Chuck

NOTE:

1) All The above specifications are approximate and subject to change without prior notice as improvements are made from lime to lime.

2) The description "standard accessories / Salient features" conforms to its list not the photo of models shown in the catalogue and subject to change without prior notice as improvements are made from time to time.

MODEL	FLOOR SPACE (Approx)	WEIGHT kgs.(Approx)		CASE DIMENSIONS (Approx)
Net	Gross	L x	W x	H
ECT - 1	2300 x 1000mm	920	1120	2500	1100	1600
ECT - 2	2600 x 1000mm	980	1180	2800	1100	1600
GHL - 1	2300 x 1000mm	1000	1200	2500	1100	1600
GHL - 2	2600 x 1000mm	1200	1400	2800	1100	1600
GHL - 3	2600 x 1000mm	1250	1450	2800	1100	1600
GHL - 4	3100 x 1000mm	1500	1750	3300	1100	1600
GHL - 7	2600 x 1000mm	1350	1550	2800	1100	1700
GHL - 8	3100 x 1000mm	1550	1750	3300	1100	1700
GHL - 5	2800 x 1000mm	1800	2100	3000	1100	1600
GHL - 6	3300 x 1000mm	2100	2400	3500	1100	1600
SAG - 1	3200 x 1000mm	1750	2075	3400	1100	1400
SAG - 2	3800 x 1000mm	1850	2150	4000	1100	1400
SAG - 3	4300 x 1000mm	2250	2550	4500	1100	1400
SAG - 4	4800 x 1000mm	2400	2800	5000	1100	1400
SAG - 5	5300 x 1000mm	2100	2400	2900	1200	1800
GHL - 12	3200 x 1100mm	2250	2550	3400	1200	1800
GHL - 13	3800 x 1100mm	2700	3000	4000	1200	1800
GHL-14	4400 x 1100mm	3000	3400	4600	1200	1800
GHL - 15	4900 x 1100mm	3300	3700	5100	1200	1800

TECHNICAL SPECIFICATIONS

SPECIFICATIONS	Pioneer-Ecoturn	Pioneer-GHL -175	Pioneer - GHL - 215	Pioneer GHL . 250 - PL	Pioneer GHL - 250	Pioneer SAG - 254	Pioneer - GHL - 300
Height of Center (mm)	215	175	215	250	250	254	300
Swing Over Bed (mm)	425	350	430	500	500	500	600
Swing Over Cross Slide (mm)	250	176	250	320	290	300	370
Distance Between Center (mm)	750 / 1000	750/1000	1000/1500	1000/1500	1000/1500	100011500/2000/2500/3000	1000/1500/2000/2500/3000/3500
Swing Over Bed (mm)	620	620	700	750	770	800	850
Bed
Bed Type	2V & 2 FLAT	2V & 2 FLAT	2V & 2 FLAT	2V & 2 FLAT	2V & 2 FLAT	2V & 2 FLAT	2V & 2 FLAT
Bed Width (mm)	279	280	280	280	355	325	355
Length of Gap in front of Face Plate (mm)	120	160	160	160	160	175	150
Bed
Number of Spindle Speeds	8	8 (std.) 16 (Optni.)	8 (std.) 16 (Optni.)	8 (Std.) 16 (Optni.)	18	8	12
Spindle Speed Range : R.P.M.	54 to 1200	54-1200 (std.) 54-1700 (Optni.)	54-1200 (std.) 54-1700 (Optni,)	54-1200 (std.) 54-1700 (Optni,)	32 to 1600 (Std.) 40-2000 (Optni.)	30 to 1300 {Std.) 40-1700 (Optni.)	27 to 700 (Std.) 45-1200 (Optni.)
Type & Size of Spindle Nose	A/2 -4	Cam Lock, size D1-4	Cam Lock, size D1-4	A/2 - 6	Cam Lock, size 6*	A/2-6	A/2-8
Spindle Bore (mm)	40 mm	40 mm	40 mm	55 mm	55 mm	52 mm	80 mm
Spindle Taper Number	MT-5	MT-5	MT-5	MT-6	MT-6	MT-6	MT-6
Diameter of Front Bearing	OD 110 x ID 60	OD 110 X ID 60	OD 110 X ID 60	OD 130 x ID 85	OD 150 X ID 85	OD 140 X ID 80	OD 200 x ID 110
Feeds and Threads
Number of Feeds	55	72	76	76	76	72	72
Range of longitudinal Feeds (mm/Rev)	0.08 - 1.48 mm/Rev	0.033 to 0.739	0.026 to 0.936	0.026 to 0.936	0.037 to 1.34	0.057 to 1.600	0.037 to 1.34
Range of Cross Feeds (mm/Rev)	0.017 - 0.250 mm/Rev.	0.021 to 0.458	0.016 to 0.58	0.016 to 0.58	0.016 to 0.58	0.014 to 0.4	0.016 to 0.58
Number of Threads	55	104	106	106	106	105	105
Range of Metric Threads/No.	0.5 to 7.5 (20)	0.2 to 7 mm (32)	0.2 to 7 mm (33)	0.2 to 7 mm (33)	0.2 to 7 mm (33)	0.2 to 7 mm (33)	0.2 to 7 mm (33)
Range of Inch Threads/No.	60 to 4 T.P.I. (35)	72 to 4 TPI (36)	72 to 4 TPI (36)	72 to 4 TPI (36)	72 to 4 TPI (36)	72 to 4 TPI (36)	72 to 4 TPI (36)
Range of Module Threads/No.	-	0.4 to 3 Module (15)	0.3 to 3 Module (16)	0.3 to 3 Module (16)	0.3 to 3 Module (16)	0.4 to 3 Module (15)	0.4 to 3 Module (15)
Range of D.P. Threads/No.	-	44 to 8 D.P. (21)	44 to 8 D.P. (21)	44 to 8 D.P. (21)	44 to 8 D.P. (21)	44 to 8 D.P. (21)	44 to 8 D.P. (21)
Lead Screw Dia (mm)	31.75	31.75	31.75	31.75	38.1	38.1	38.1
Lead Screw Pitch (mm)	4 T.P.I.	6 mm	6 mm	6 mm	6 mm	6 mm	6 mm
Saddle
Cross Slide Dimension (mm)	168 x 367	178 X 415	178 X 415	178 X 415	250 X 500	200 X 450	250 X 500
Cross Slide Travel (mm)	225	225	225	225	325	325	325
Tool Shank Section (mm)	25 x 25	22 X 22	25 x 25	25 x 25	25 x 25	25 x 25	25 x 25
Saddle Traverse (mm)	640/890	640/890	890/1390	870 / 1370	890/1390	890/1390/1890/2390/2890	900/1400/1900/2400/2900/3400
Compound Slide Traverse (mm)	130	130	130	130	150	150	150
Tail Stock
Spindle Dia (mm)	50.8	50.8	50.8	50.8	63.5	50.8	63.5
Spindle Taper Number	MT-3	MT-3	MT-3	MT-4	MT-4	MT-4	MT-4
Spindle Travel	175	175	175	175	200	200	200
Lateral Move of Tail Stock (mm)	5	5	5	5	5	5	5
Motor
Main Motor (Kw)	1,5	1,5	2.25	2.25	3.75	3.75 Std./ (5.5 Optni)	5.5 Std. /(7.5 Optni)

TECHNICAL SPECIFICATIONS

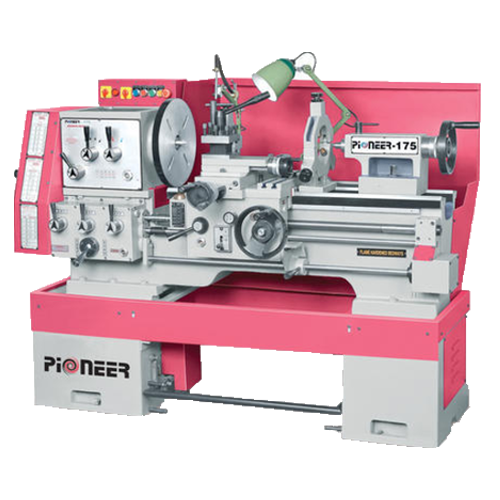

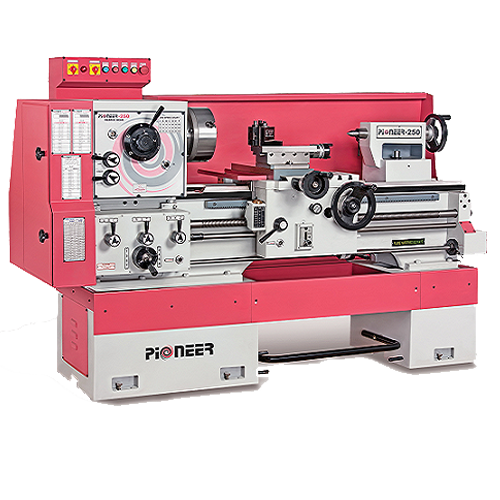

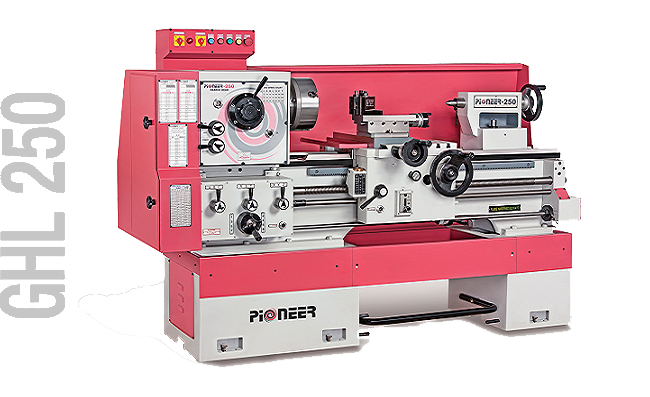

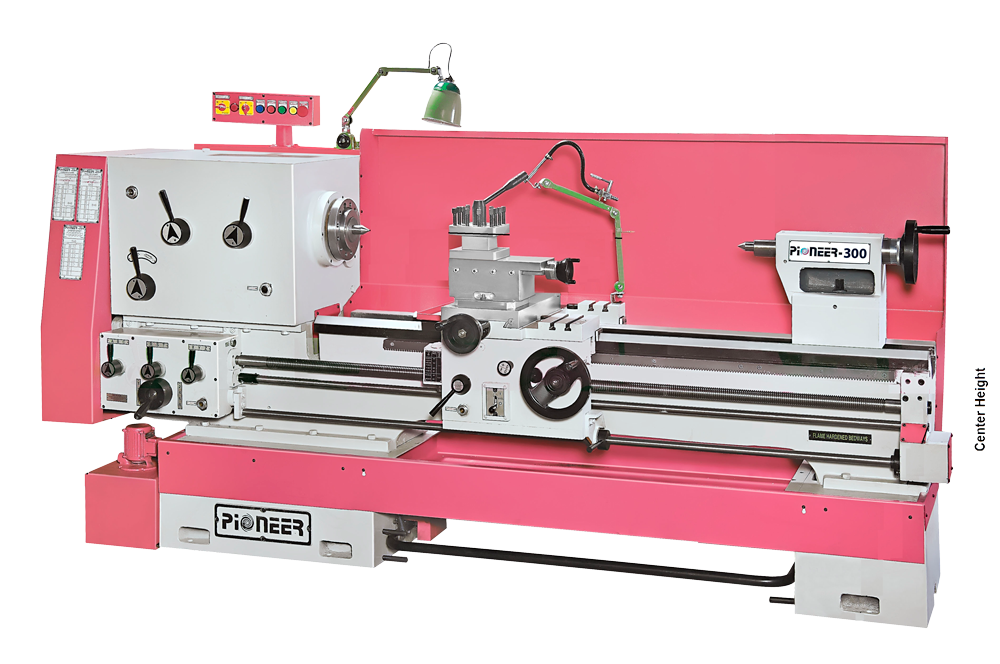

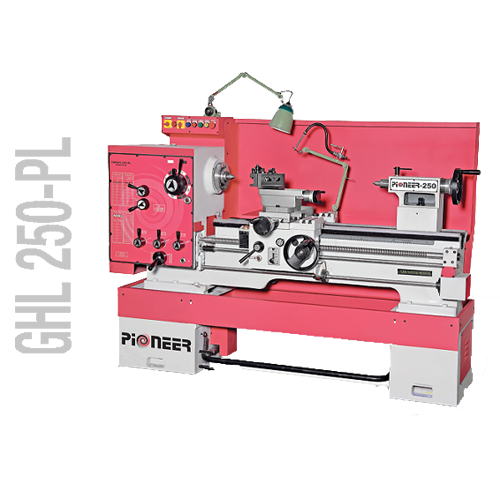

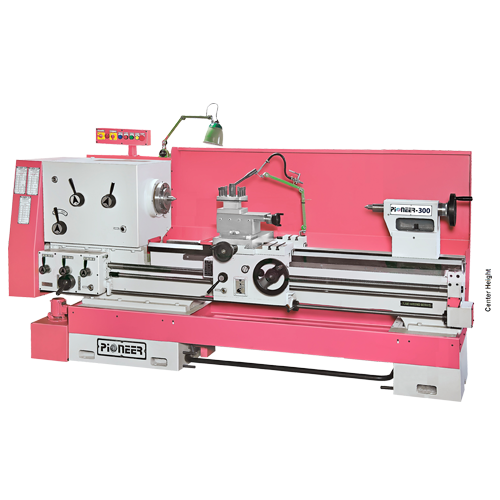

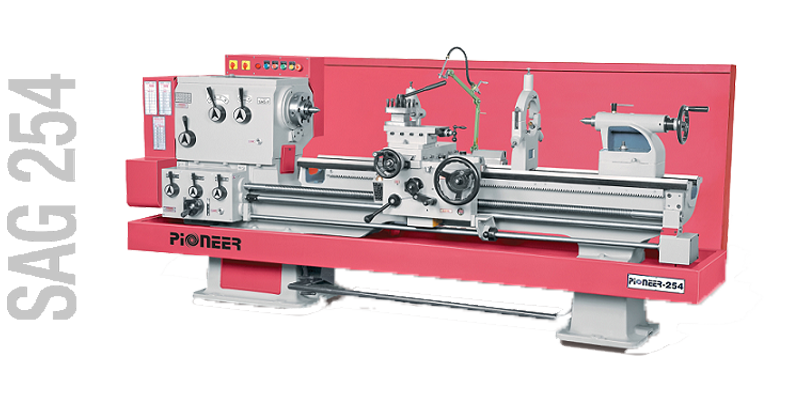

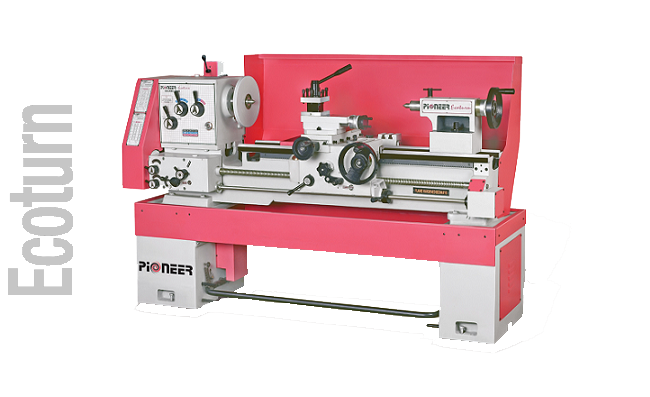

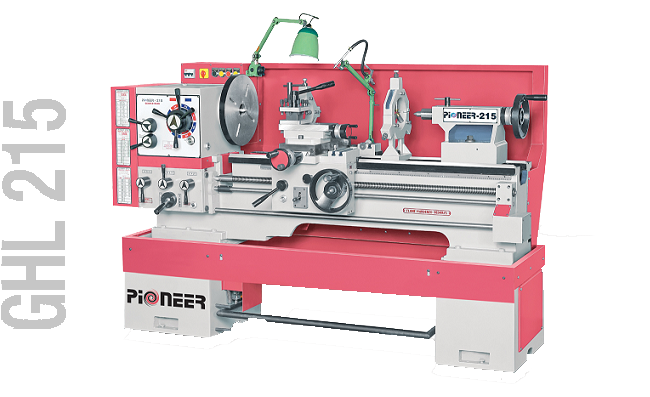

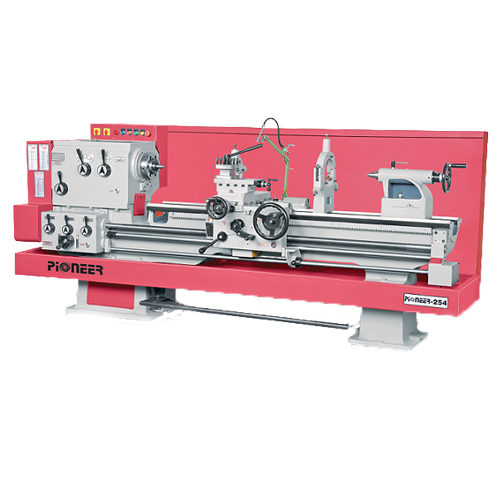

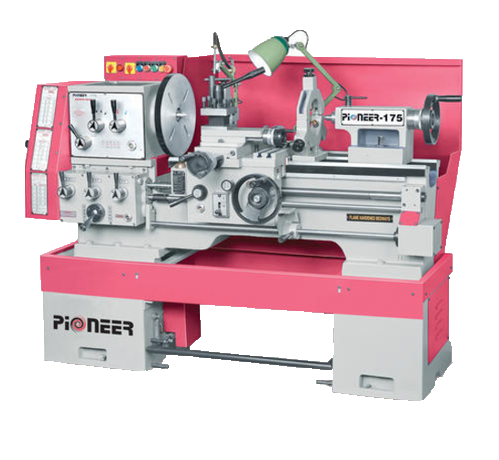

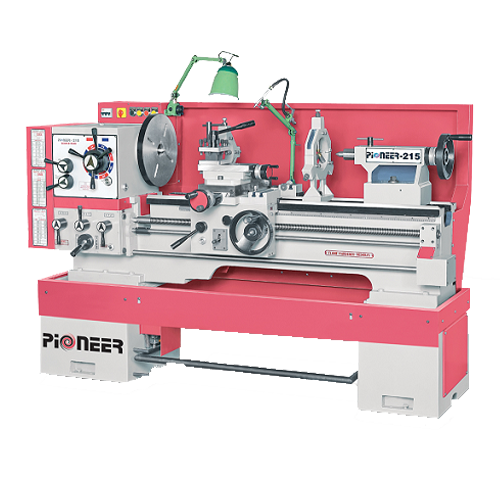

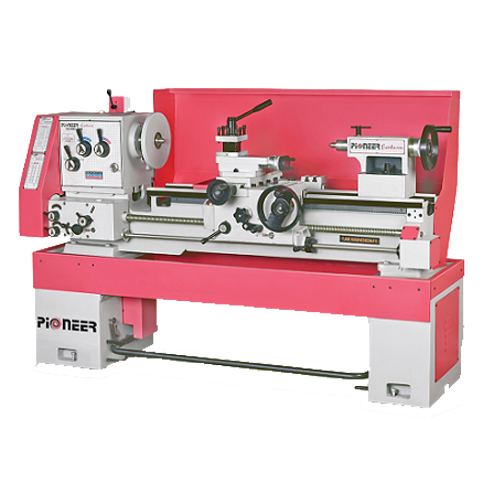

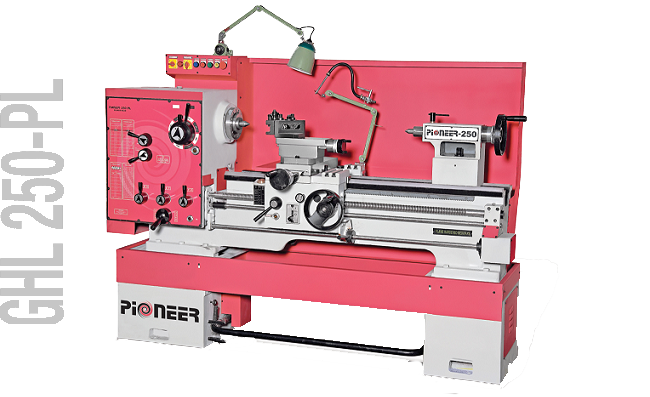

SPECIFICATIONS	PIONEER 175 GHL-1,2	PIONEER 215 GHL-3,4	ECOTURN ECT-1,2	PIONEER 250 GHL-5,6	PIONEER 250PL GHL-7,8	PIONEER 254 SAG-1to 5	PIONEER 300 GHL-11to16
Center Height	175mm	215mm	215mm	250mm	250(PL)mm	254mm	300mm
Graded Casting	√	√	√	√	√	√	√
Head Stock Spindle Speed (Standard) Head Stock Spindle Speed (Optional)	8 (54-1200) 16(54-1700)	8 (54-1200)16(54-1700)	8 (54-1200) -	18(32-1600) 18 (40-2000)	8 (54-1200) 16(54-1700)	8 (30-1300) 8 (40-1700)	12 (27-700) 12 (45-1200)
Head Stock Spindle is Hardened & Ground made from 20mncr5 material mounted on taper roller bearings	Cam Lock (D1-4)	Cam Lock (D1-4)	A 2-4	Cam Lock Size - 6	A2-6	A2-6 / Cam lock (Optl)	A2-8
Universal Feed Gear Box with INCH, MM, DP and MODULE thread facility with easy operating speed change with JOY STICK and levers for wide range of threads and feeds	√	√	Feed Gear Box with Inch & mm threads	√	√	√	√
Head Stock Spindle Bore	40mm	40mm	40mm	55mm	55mm	52mm	80mm
No. of feeds	72	76	55	76	76	72	72
No of threads	104	106	55	106	106	105	105
Head Stock Gears & Splines made from 20mncr5 material hardened and ground with profile grinding which is self lubricated	√	√	√	√	√	√	√
Universal feed Box Gears & Splines made from EN-8 material toughened and mounted on bearings with self lubricated and oil bath.	√	√	Steel & Graded casting	√	√	√	√
Taper wages of SG iron casting in cross slide	√	√	Flower type	√	√	Flower type	√
Flame Hardened guide ways bed (Std) Induction Hardened guide ways Bed(Optl.)	√	√	√	√	√	√	√
Semi lacor paint with International shade	√	√	√	√	√	√	√
Separate Electrical control panel board with Reverse, Forward, Inching and Emergency stop	√	√	Reverse Forward Switch	√	√	√	√
Timing Belt pulleys instead of change gears	-	√	-	-	√	-	-
The Robust designed Tail Stock with Hardened and Ground Spindle of EN-8 Alloy steel.	√	√	√	√	√	√	√
4 Position Tool Post with with 5 Position in-built indexing	√	√	√	√	√	√	√
All standard in millimeter	√	√	√	√	√	√	√
Thread Shaft and Feed Shaft separate for long life	√	√	Lead screw & Feed shaft common	√	√	√	√
Thread Shaft and Feed Shaft separate for long life	√ (Selective Thread)	√	As per Thread Chart	√ 18 (40-2000)	√ 16(54-1700)	√ (Selective Thread)	√ (Selective Thread)
Manual Book	√	√	√	√	√	√	√

NOTE:

All the above specifications are approximate and guidance indicating primary information only and are subject to change without prior notice as improvements are made from time to time. The description standard accessories / features conforms to its list not the photo of models shown in the catalogue and are subject to change without prior notice as improvements are made from time to time.
