Arun Lathe Machine

At Siddheswari Corporation, we are a leading cone pulley V-belt bearing and brass type lathe machine supplier. Since inception, we have been supplying finest quality and precisely engineered Cone Pulley Lathe Machines to meet client's unique and custom requirements. Owing to international quality standards and high speed operation, our lathe machines are used across a wide range of applications.

Being the leading light duty lathe machine supplier in Gujarat, we supply high quality lathe machines of different brands and notable brands. Cone Pulley V-Belt Arun Lathe machines supplied by us are widely used in Industries such as power plants, shipbuilding, mining, paper mills, sugar mills, Pvc Pipes, Cement Industries etc. Designed using high grade raw materials and advanced technology, they are successfully fulfilling the needs of the current market scenario.

All the lathe machines offered by us are manufactured utilizing quality tested raw material such as stainless steel and iron. This makes them flawless and reliable to use for years. Besides this, we are a growing and flourishing Medium duty Lathe Machine Manufacturer in Gujarat. We have the best in class manufacturing set up and testing amenities which helps us manufacture products as per the industry quality standards.

Being a responsible form, we are committed towards manufacturing the highest quality machines backed by cutting edge technology. This has helped us form long term relationships with our clients in India and abroad. With years of experience and sound knowledge, we take pride in the solutions we deliver. Being the leading cone pulley V-belt bearing and brass type lathe machine supplier, our aim is to provide the best in class products and services for the Machine Tool Industry that meet international quality standards.

Technical Specificaion HEAVY DUTY LATHE MACHINE 1675 MM., 2135 MM., 2740 MM., 3050 MM., & 3660 MM MEDIUM DUTY LATHE MACHINE 1370 MM., 1600 MM. & 1830 MM. LIGHT DUTY LATHE MACHINE 1370 MM, 1600 MM, 1370 & 1830 MM
CAPACITY METRIC METRIC METRIC
Height of Centre 254 mm. 215 mm. 165 mm.
Swing over bed 490 mm. 425 mm 325 mm
Swing over Cross Slide 290 mm. 260 mm. 180 mm.
Movement of Cross Slide 300 mm. 250 mm. 225 mm.
Swing in Gap 800 mm. 620 mm. 500 mm.
BED
Bed Type 2V &2 Flat 2V &2 Flat 2V &2 Flat
Bed Width 325 mm. 279 mm. 238 mm.
Length of Gap in Bed 150 mm. 110mm. 110mm.
Length of Gap in Front of Face Plate 200 mm. 125 mm. 125 mm.
MAIN SPINDLE
Size of Threaded Spindle Nose 6 TPI 75 mm. 6 TPI 75 mm. 8 TPI 60 mm.
Taper Bore in Centre Sleeve MT-4 MT-4 MT-3
Spindle Bore 52 mm. 52 mm. 40 mm.
TAIL STOCK
Ram Diameter 50.8 mm. 50.8 mm. 38.1 mm.
English - Inches 19 (2 TO 24TPI) 19 (2 TO 24TPI) 19 (2 TO 24TPI)
Taper Bore in Centre Sleeve MT-4 MT-4 MT-3
Ram Travel 190 mm. 150 mm. 115 mm.
COMPOUND SLIDE
Travel of Compound Slide 150 mm. 150 mm. 120 mm.
Tool Shank Section 25 x 25 mm. 25 x 25 mm. 22 x 22 mm.
SPEEDS
No. of Speeds 8 6 8
Range 25 - 475 RPM 40 - 550 RPM 35-825 RPM
THREAD / NO. RANGE
Lead Screw Diameter & Pitch 38.1 mm. x 4 TPI 31.75 mm. x 4 TPI 25.4 mm. x 4 TPI
Metric 13/1 to 6 mm. 19/0.50 to 8.0 mm. 19/0.50 to 8.0 mm.
Inch 19/2 to 24 TPI 23/4 to 40 TPI 23/4 to 40 TPI
ELECTRICALS
Main Motor (1440 R.P.M.-AC-3 Phase) 2 H.P. / 440 V 2 H.P. / 440 V 1 H.P. / 440 V

LIGHT DUTY LATHE MACHINE

MODEL ADMIT BETWEEN CENTER WEIGHT(APPROX) FLOOR SPACE(APPROX)

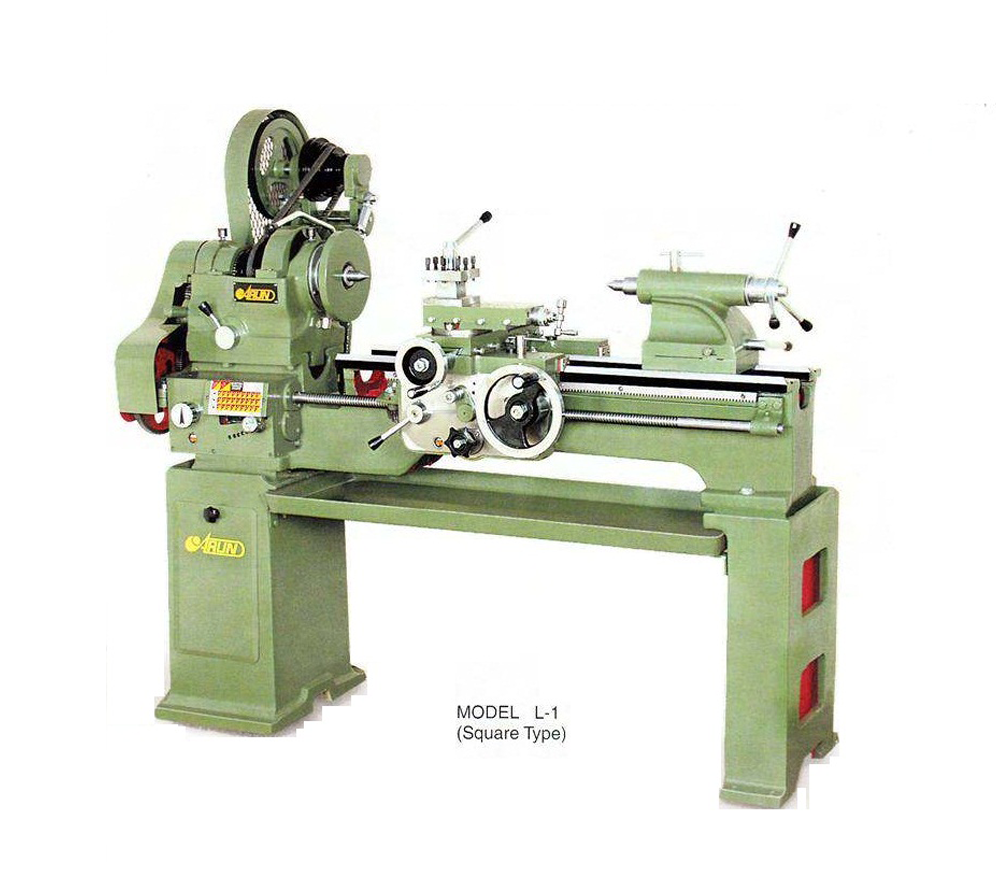

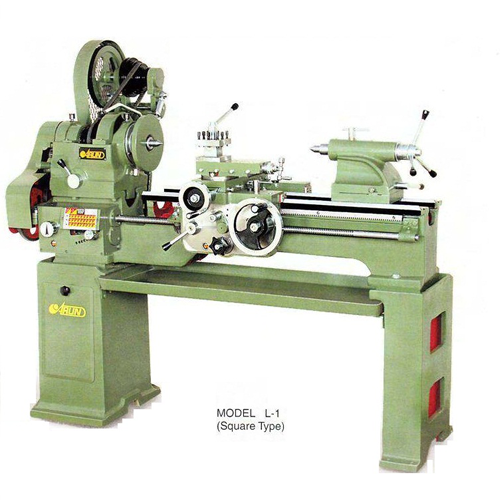

L-1 1370 mm. 650 mm. 430 kg. 1650 X 840 mm.
L-2 1600 mm. 875 mm. 470 kg. 1880 X 840 mm.
L-3 1830 mm. 1100 mm. 490 kg. 2100 X 840 mm.

MEDIUM DUTY LATHE MACHINE

MODEL ADMIT BETWEEN CENTER WEIGHT(APPROX) FLOOR SPACE(APPROX)
M-1 1370 mm 450 mm. 575 kg.d 1650 X 970 mm.
M-2 1600 mm 725 mm. 650 kg. 1950 X 970 mm.

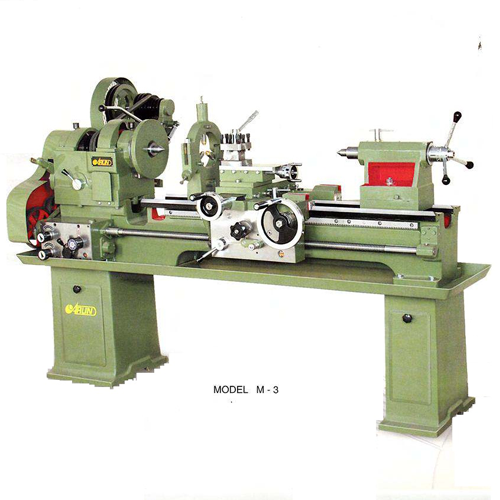

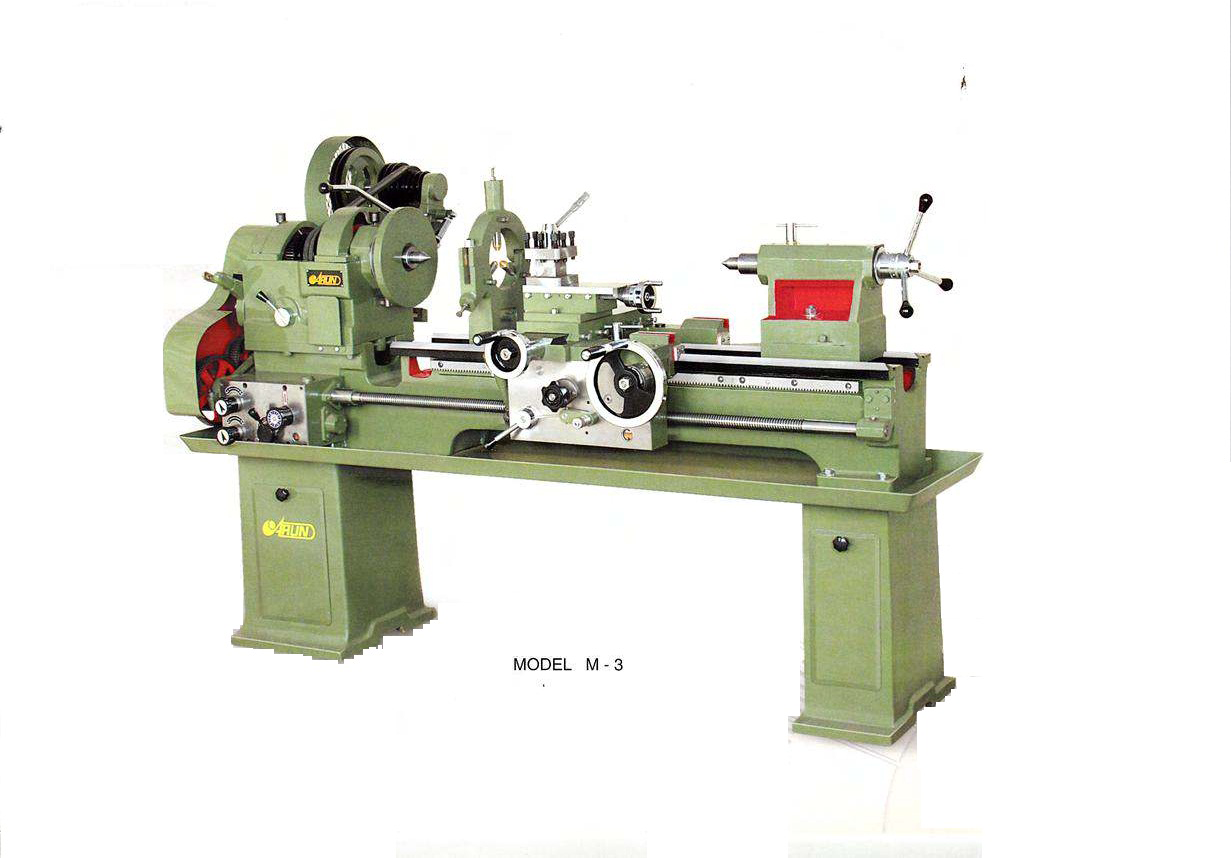

M-3 1830 mm 900 mm 675 kg. 2100 X 970 mm.

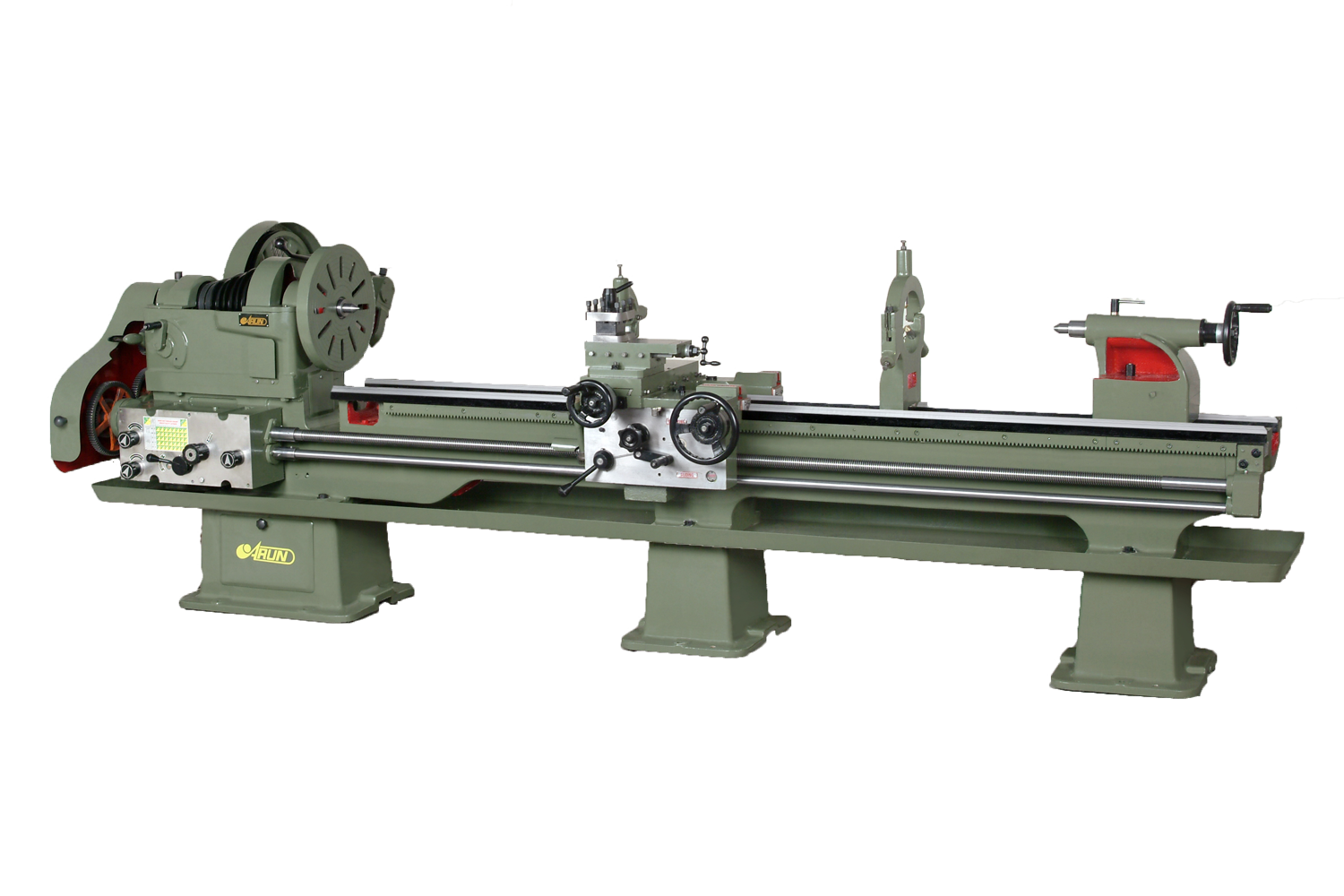

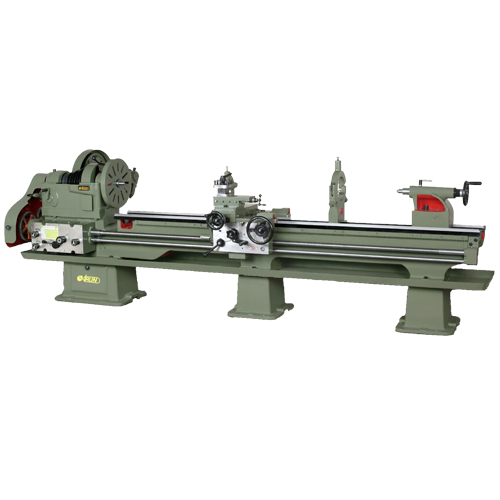

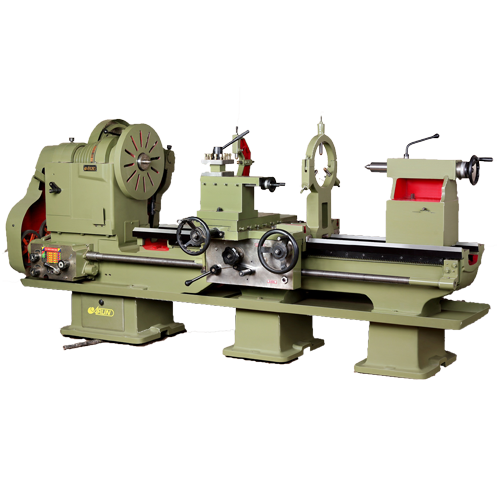

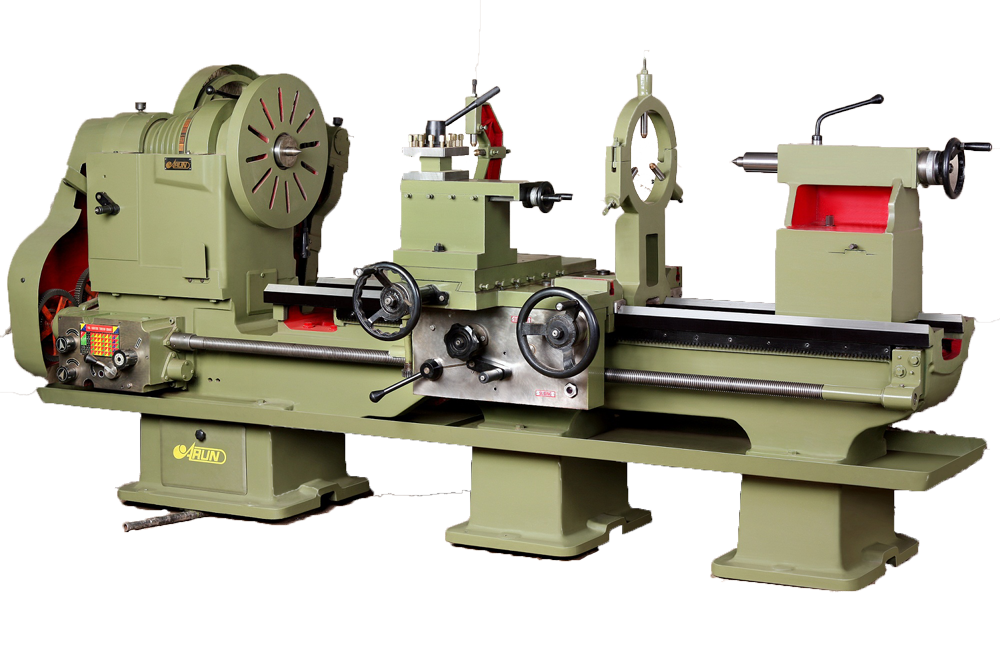

HEAVY DUTY LATHE MACHINE

MODEL ADMIT BETWEEN CENTER WEIGHT(APPROX) FLOOR SPACE(APPROX)
H-1 1675 mm. 550 mm. 1050 kg. 2120 X 1475 mm.
H-2 2135 mm. 1000 mm. 1200 kg. 2575 X 1475 mm.
H-3 2740 mm. 1550 mm. 1400 kg. 3185 X 1475 mm.
H-4 3050 mm. 1850 mm. 1650 kg. 3490 X 1475 mm.
H-5 3660 mm. 2450 mm. 1900 kg. 4100 X 1475 mm.

Standard Accessories (For Heavy Duty Lathe Machine only)

Flame Hardened Bedways Steady Rest & Follow Rest (exept 5'.6") Belt Guard Face Plate
Chuck Back Plate Change Gear Set Motor Pulley 2 Dead Centre
Tool Post Spanner Switch Stand Spindle Sleeve

Extra Accessories(For Heavy Duty Lathe Machine only)

Taper Turning Attachment Electric Motor R/f Switch Machine Lamp
Norton Gear Box Double Screw Gear Box Dog Chuck Rear Tool Post
Three Speed Gear Box Electrical Coolant Pump with Fitting Extra Bed Width True Chuck
Extra Centre Height Extra Spindle Hollow V - Belt
