Hardened and ground bed, Hardened & ground gears in headstock, Threaded Nose Spindle, Norton Gear Box for Metric/INCH Thread with Machine is Tested to IS-1878 (Part) 1993.
Standard Accessories
Carrier Plate, Center Bush, 2Nos. MT-3 Dead Center, Tool post spanner, thread dial indicator, 4 way tool post and instruction manual with beam packing.

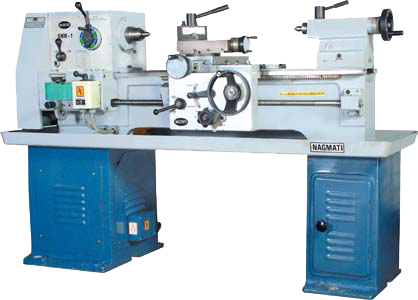

MEDIUM DUTY ALL GEARED PRECISION LATHE MACHINE - MODEL : GNM-1 SERIES
| Specifications | GNM-1 | GNM-2 |
|---|---|---|
| Center Height | 175mm | 175mm |
| Admit Between Center | 650mm | 1000mm |
| Swing over Bed | 350mm | 350mm |
| Swing over Cross Slide | 215mm | 215mm |
| Swing in Gap | No Gap | No Gap |
| Bed Width | 240mm | 240mm |
| Spindle Nose / Bore / Taper | Threaded . 41mm / MT-5 | Threaded . 41mm / MT-5 |
| Spindle Speed / Range | 8 / 75 - 1500rpm | 8 / 75 - 1500rpm |
| Motor Hp | 2hp / 1.5 kw | 2hp / 1.5 kw |
| Lead Screw Diameter / Thread | 25.4 mm / 6 TPI | 25.4 mm / 6 TPI |
| Thread Metric Pitches / Nos. | 0.5 to 6 mm pitches / 17 | 0.5 to 6 mm pitches / 17 |
| Thread Inches / Nos. | 4 to 22 TPI / 54 | 4 to 22 TPI / 54 |
| Feeds Longitudinal | 0.015 to 0.86 mm / rev. | 0.015 to 0.86 mm / rev. |
| Feeds Cross | 0.5 times of ling. feed | 0.5 times of ling. feed |
| Tailstock Quill Diameter | 50 mm | 50 mm |
| Tailstock Quill Travel / Taper | 140 mm / MT-3 | 140 mm / MT-3 |
| Net Weight / Gross Weight | 900 Kgs. / 1100 Kgs. | 1000 Kgs. / 1200 Kgs. |
| Shipping Length | 1.90m x 1.14m x 2.72 Cubic Meter | 1.90m x 1.14m x 2.72 Cubic Meter |
Optional Accessories
| Face plate | Steady Rest PAD Type | Rear Splash Guard 1 mtr. | Machine Lamp |
| Chuck Plate | Steady Rest BRG Type | Taper Turning Attachment | Coolant Pump |
| 3 Jaw True Chuck | Follow Rest PAD Type | Rear Tool post | Foot Operating Brake |
| 4 Jaw Independent Chuck | Revolving Center | Quick Change Tool post | Electric Motor, Switch, Belt |
