Hardened and ground bed, Hardened & ground gears in headstock, Threaded Nose Spindle, Norton Gear Box for Metric/INCH Thread with Machine is Tested to IS-1878 (Part) 1993.
Standard Accessories
Carrier plate, Centre adaptor, Change gear set, (for metric and inch threads), Tool post spanner, Thread dia indicator, Dead centers (MT-4) - 2 Nos. Instruction manual.

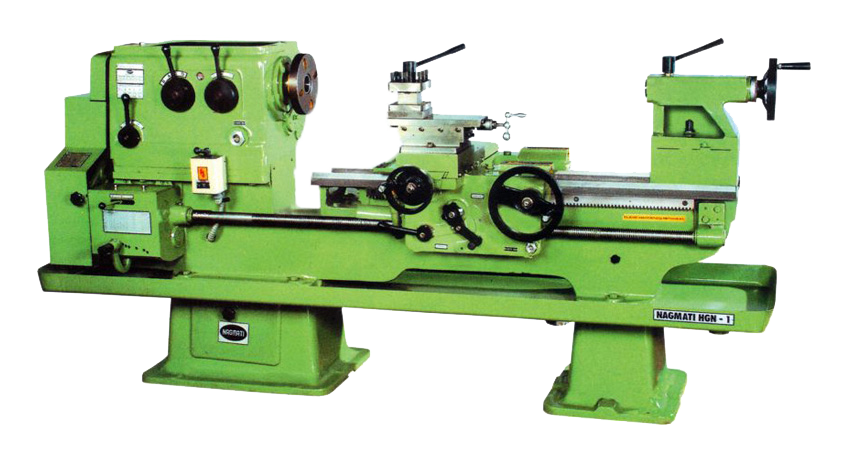

MEDIUM DUTY ALL GEARED PRECISION LATHE MACHINE : HGN SERIES
| Specifications | HGN-250 / 10" CH | HGN-300 / 12" CH | HGN-375 / 15" CH |
|---|---|---|---|
| Center Height | 250mm | 300mm | 375mm |
| Admit Between Center | 450-4000mm | 450-4000mm | 450-4000mm |
| Swing over bed | 475mm | 595mm | 735mm |
| Swing over Cross Slide | 300mm | 400mm | 535mm |
| Swing in Gap | 785mm | 885mm | 1000mm |
| Width of Gap | 200mm | 200mm | 200mm |
| Width of Bed | 325mm | 325mm | 375mm |
| Spindle Nose / Bore /Taper | Threaded / 52mm /MT-5 | Threaded / 52mm /MT-5 | Threaded / 52mm /MT-5 |
| Spindle Speed / Range | 8/50-1235rpm | 8/50-1235rpm | 8/50-1235rpm |
| Motor | 3hp | 3hp | 3hp |
| Tailstock RAM Dia. | 63mm | 63mm | 63mm |
| RAM Travel / Taper | 200mm / MT-4 | 200mm / MT-4 | 200mm / MT-4 |
| Feeds Longitudinal | 0.015 to 0.86 mm / rev. | 0.015 to 0.86 mm / rev. | |
| Feeds Cross | 0.5 times of ling. feed | 0.5 times of ling. feed | |
| Tailstock Quill Diameter | 50 mm | 50 mm | |
| Tailstock Quill Travel / Taper | 140 mm / MT-3 | 140 mm / MT-3 | |
| Net Weight / Gross Weight | 900 Kgs. / 1100 Kgs. | 1000 Kgs. / 1200 Kgs. | |
| Shipping Length | 1.90m x 1.14m x 2.72 Cubic Meter | 1.90m x 1.14m x 2.72 Cubic Meter |
Optional Accessories
| 80 mm spindle bore | Jaw Independent Chuck | Revolving Center | Quick Change Tool post |
| Face plate | Steady Rest PAD Type | Rear Splash Guard 1 mtr. | Machine Lamp |
| Chuck Plate | Steady Rest BRG Type | Taper Turning Attachment | Coolant Pump |
| 3 Jaw True Chuck | Follow Rest PAD Type | Rear Tool post | Foot Operating Brake |
| Electric Motor | Switch | V-Belt |
